In December 1935, the Beech Aircraft Company of Wichita, Kansas began
work on their second aircraft, the Model 18. Their first aircraft, the
Model 17 Staggerwing biplane, designated GB and JB, q.v., in U.S.
Navy (USN) service, had been introduced in 1932 and this new aircraft
would be radically different in construction and design than its
predecessor. The Model 18 was a twin-engined, all-metal, low-wing
monoplane with retractable main landing gear; the tail wheel did not
retract. The tail unit consisted on twin fins and rudders; the ailerons,
flaps, rudders and elevators had welded steel-tube frames with
fabric-covering. Accommodations were provided for pilot and co-pilot
sitting side-by-side in the cockpit with dual controls and up to eight
passengers could be accommodated in the cabin. Intended for small airline
or corporate use, this transport was designed to have low operating cost,
cabin comfort, safety comparable to larger airliners, and the ability to
operate from small airfields. Unfortunately, the Model 18 had to compete
with the Lockheed Model 12 Electra Junior, designated JO and R3O,
q.v., in USN service, and the Model 18 was underpowered when compared to
the Lockheed machine making it undesirable to U.S. airlines. Sales were
limited to only 39 aircraft prior to 1 September 1939 including five
aircraft purchased by three small Canadian airlines. Although not a great
success initially, over 4,500 of these aircraft were acquired by the U.S.
military during World War II. After the war, Beech continued to produce
the Model 18 until 1957 with a total of 6,326 aircraft delivered. In
1954, the Super 18 was introduced and 762 were manufactured until the
last Model 18 rolled off the assembly line in November 1969.
The first Model 18A rolled off the assembly in early January 1937 and
made its first flight on 15 January. As with many aircraft of the day,
the Model 18 could be powered by several different engines; the specific
engine used in an aircraft was indicated by a letter suffix to the model
number, i.e.:
A: 350 hp (261 kW) Wright R-760-E2 Whirlwind seven-cylinder radial
engine
B: 285 hp (213 kW) Jacobs L-5 seven-cylinder radial engine
D: 330 hp (246 kW) Jacobs L-6 seven-cylinder radial engine
R: 420 hp (313 kW) Wright R-975-E2/E3 Whirlwind nine-cylinder radial
engine
S: 450 hp (336 kW) Pratt & Whitney R-985-SB Wasp Junior
nine-cylinder radial engine
Nine versions of the Model 18 were built powered by the five engines
listed above.
The second version of the Model 18 was the B18S, the B prefix indicating
the second version and the S suffix indicating the powerplant. The only
difference between the Model 18S and Model B18S were interior changes.
JRB Expeditor
In 1939, the U.S. Army Air Corps (USAAC), superseded by the U.S.
Army Air Forces (USAAF) on 20 June 1941, ordered two versions of the
Model B18S for military service. These two aircraft, like all Model 18s
in U.S. military service, were powered by two 450 hp (336 kW) Pratt &
Whitney R-985 Wasp Junior nine-cylinder, single-row, air-cooled, radial
engines with Hamilton-Standard constant-speed propellers. The first
order, placed in April 1939, was for fourteen specialized photographic
reconnaissance aircraft, designated F-2; these aircraft had two
multiple-lens mapping cameras located in the cabin floor and a special
device installed in the cabin door permitting side-view or oblique-angle
photography. In August 1939, eleven aircraft intended for use as
six-passenger staff transports, designated C-45, were ordered. [In 1943,
the USAAF redesignated transport and cargo aircraft that could
accommodate up to eight persons, including pilot, or a cargo weighing no
more than 1,400 pounds (635 kg) as utility transports and cargo aircraft
(UC) and the C-45s were redesignated UC-45s.] In June 1940, the USN
placed an initial order for five Model B18Ss similar to the USAAC's F-2
to be used as photographic and drone-control aircraft. These five-place
aircraft, designated JRB-1, had a hatch within the cabin door to allow an
oblique camera installation; they also had a fairing over the cockpit and
forward cabin to allow for the radio control of drone aircraft. The
fairing had numerous windows permitting the drone controller to observe
and control the drone aircraft. Two other orders following bringing the
total number of aircraft ordered to eleven; all were delivered by late
1940. Initially, the JRB-1s were named Voyager but the name was
subsequently changed to Expeditor.
The USN placed a second order in 1940 for fifteen five-passenger
aircraft, designated JRB-2, intended to serve as transports for senior
officers. During the war, two USAAF C-45s and a civil Model B18S, were
transferred to the USN and designated JRB-2. All future Model 18s
acquired by the USN would be ordered by the USAAF and transferred to the
Navy.
In 1942, the USAAF ordered 243 eight-passenger C-45B-BHs; included in the
order were 20 for the USN which designated them JRB-3s. These aircraft
were fitted with photographic survey equipment and could be used as
either transports or photographic aircraft. All were delivered to the USN
in 1942 and 1943.
The final production version of the C-45 series was the UC-45F-BH. In
1943, the USAAF ordered 1,465 of these aircraft including 328 JRB-4s for
the USN. This version had a slightly lengthened nose and could
accommodate seven-passengers. Deliveries began in 1944
SNB Kansan and Navigator
In February 1940, the Chinese government ordered six Model M18Rs
from Beech. These aircraft were designed as advanced pilot trainers and
light bombers and were equipped with a Plexiglas nose, a dorsal turret,
internal bomb racks and a machine gun in the rear floor. Deliveries of
these aircraft began in September 1940. In that same month, the USAAC
placed an initial order for a bombardier trainer designated AT-11-BH. The
AT-11, which evolved from the Model M18R, had a Plexiglas nose
accommodating a Norden bomb sight and a flexible 30-caliber (7.62 mm)
machine gun; an internal bomb bay accommodating 1,000-pounds (454 kg) of
bombs; and an electrically-operated Beech and Crocker-Wheeler dorsal
turret with a 30-caliber (7.62 mm) machine gun. During the war, the
USAAC/USAAF ordered a total of 1,902 AT-11s which included 320 ordered
for the USN in 1942; in USN service, these aircraft were designated SNB-1
Kansans and were used for bombardier training of bomber and patrol
bomber crews. Deliveries to the USN began in 1942.
A second specialized trainer acquired by the USAAC/USAAF was the AT-7-BH.
This model, initially ordered in August 1940, could accommodate an
instructor and three student navigators with each student having an
individual chart table and instruments; the AT-7 also had a rotatable
astrodome on the top of the fuselage just aft of the cockpit. The
USAAC/USAAF ordered a total of 1,086 AT-7-BHs during the war which
included 509 aircraft ordered for the USN in 1942; in USN service, these
aircraft were designated SNB-2 Navigators. An advanced version of
this aircraft, initially ordered by the USAAF in March 1943, was the
AT-7C-BH with a higher gross weight and more complex avionics. A total of
925 AT-7Cs were ordered by the USAAF including 376 for the USN which
designated them SNB-2C Navigators; deliveries began in 1943.
It has been said that over 90 percent of U.S. bombardiers and navigators
in World War II were trained in AT-7, AT-11 and/or SNB aircraft.
During the war, a small number of SNB-2s were converted to SNB-2Hs and
SNB-2Ps. The SNB-2H was an ambulance aircraft designed to carry patients
to and/or between hospitals while the SNB-2P was a photographic
reconnaissance version of the SNB-2.
Postwar Modifications
Many JRBs and SNBs were modified after the war. In the late 1940s, at
least one SNB-2 was converted to an electronics countermeasures (ECM)
trainer, designated SNB-3Q, for training of radar operators and night
fighters. In 1947, at least 117 SNB-1s were returned to Beech for
rebuilding and modification to an aircraft that could be used for
maintaining flight proficiency in multi-engine aircraft; these aircraft
were redesignated SNB-4s. In 1951, the U.S. Air Force (USAF) contracted
with Beech for a major program to rebuilt C-45A and Fs, AT-7s and AT-11s.
This program was so extensive, that the time on the airframe was reset to
zero and all aircraft were given new USAF serial numbers. A total of 804
USAF aircraft were modified and, depending on the engines and equipment,
were designated C-45G or C-45H. The USN also participated in this program
and modified a large number of JRBs and SNBs to the C-45G standard. After
completion of the modification, these aircraft were designated:
SNB-5: SNB-2s modified in 1951. These aircraft were equipped with
R-985-AN-3 engines; a Heinz A-3A autopilot; heavier wing center section;
a new instrument panel; new landing gear struts, wheels and brakes; and
Aeroproducts constant-speed, fully-feathering propellers.
SNB-5P: A number of SNB-2Ps remanufactured to the C-45G standard but
retaining their camera capabilities.
JRB-5: A proposed transport version of the SNB-5 that was never
built.
JRB-6: A number of JRB-3 and -4s that were modernized but not fully to
the SNB-5 configuration; the major omission was the new main and tail
landing gear.
After being modified, the SNB-5s were renamed Expeditor.
In 1962, the U.S. Department of Defense adopted a new, standard
designation system based on the USAF system that was to be applied to all
military aircraft. The SNBs still in the inventory were redesignated
C-45s, specifically, the SNB-5 became TC-45J and the SNB-5P became the
RC-45J. TC-45Js whose primary mission changed from training to utility
transport were subsequently redesignated UC-45Js.
PRODUCTION HISTORY
JRB-1: Eleven Model B18Ss intended for photographic and drone-control
with a fairing over the cockpit and forward cabin to permit control of
drone aircraft. Powered by two 450 hp (336 kW) Pratt & Whitney
R-985-50 nine-cylinder, air-cooled, radial engines
JRB-2: Fifteen five-passenger B-18Ss powered by R-985-50 engines acquired
as staff transports for senior officers. Two USAAF C-45s and one
impressed Model B18S were transferred to the USN during the war.
JRB-3: Twenty USAAF UC-45B-BHs for USN. Powered by two R-985-AN-1
engines, these eight-passenger transports could also be fitted with
photographic survey equipment.
JRB-4: 328 USAAF UC-45F-BHs for USN. Powered by two R-985-AN-1 engines,
this seven passenger transport had a lengthened nose.
JRB-5: Proposed transport version of SNB-5; not built.
JRB-6: A number of JRB-3 and -4 aircraft modernized in the 1950s but not
fully to the SNB-5 configuration.
SNB-1 Kansan: 320 USAAF AT-11-BH bomber/gunnery trainers transferred to
USN. Powered by R-985-AN-1 engines, these had a plexiglass nose, dorsal
turret and a bomb bay.

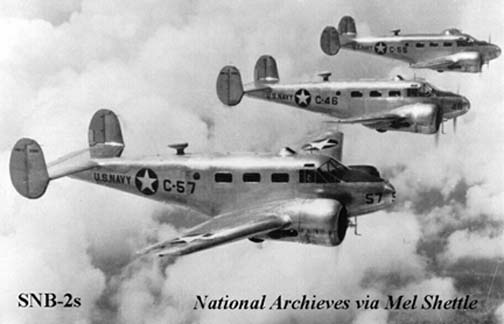

SNB-2 Navigator: 509 USAAF AT-7-BH navigational trainers transferred to
USN. Powered by R-985-25 engines, these aircraft had a crew of two plus
an instructor and three students.
SNB-2C Navigator: 376 USAAF AT-7C-BHs identical to SNB-2 but equipped
with more complex avionics and were powered by R-985-AN-3 engines.
SNB-2H Navigator: Small number of SNB-2s converted to a hospital aircraft
to fly patients to and/or between hospitals.
SNB-2P: Small number of SNB-2s converted to photographic reconnaissance
aircraft.
SNB-3Q: At least one SNB-2 converted postwar to an electronic
countermeasures (ECM) training aircraft.
SNB-4: Designation given to 117 SNB-1s returned to the Beech factory in
1947 for rebuilding and modernization.
SNB-5: SNB-2s modified in 1951 to the USAF C-45G standard. Redesignated
TC-45J in 1962.
SNB-5P: SNB-2Ps modified in 1951 per the SNB-5 upgrade. Redesignated
RC-45J in 1962.
RC-45J: SNB-5Ps redesignated in 1962.
TC-45J: SNB-5s redesignated in 1962. Those whose mission was changed from
training to utility transport were redesignated UC-45Js.
UC-45J: TC-45Js redesignated when their mission changed from training to
utility transport.
OPERATIONAL HISTORY
U.S. Navy
The first JRB-1 was delivered to Naval Air Station (NAS) Anacostia,
District of Columbia in late 1940. In December 1941, the USN had eleven
JRB-1s and 15 JRB-2s in the inventory. The JRB-1s were assigned to
Utility Squadron Five (VJ-5) at NAS Cape May, New Jersey (five
aircraft);=A0 VJ-3 at NAS San Diego, California (four aircraft); and the
Naval Aircraft Factory in Philadelphia, Pennsylvania (two aircraft).
Thirteen of the 15 JRB-2s were assigned to Navy units at seven bases in
the U.S. and two were assigned to the Naval Attaches in Bogota, Columbia
and Lima, Peru.
The JRBs were usually assigned to a naval air facility as a utility
(hack) aircraft. One JRB at NAS Anacostia was provided to the British Air
Commission for their use. Another major user of the JRB was the Naval Air
Transport Service (NATS) which used these aircraft for instrument
proficiency training and as a light transport. NATS=92 Naval Air Ferry
Command (NAFC) also used the JRB as a transport to return ferry pilots to
their home base after delivering aircraft.
The bulk of the SNBs, which were designed as trainers, were used by the
Navy training commands including the following facilities:
Instrument Flight Instructor School (IFIS) at NAS Atlanta,
Georgia.
Naval Air Navigation School (NANS) at NAS Shawnee, Oklahoma.
Operational Training Unit Bombing Squadron Two Number 1 (OTU VB2 #1),
the training unit for Lockheed PV Venturas, at NASs Sanford, Florida and
Beaufort, South Carolina.
Training Squadron Eight C of the Eighth Naval District (VN-8D8C) which provided the multi-engine syllabus at Naval Auxiliary Air Stations (NAAS)
Corry Field and Whiting Field, Florida.
VN-18C which provided the multi-engine syllabus at NAAS Rodd Field,
Texas.
The last SNB-5 was retired by the USN in July 1972.
U.S. Marine Corps (USMC)
The first Model 18 operated by the USMC was the JRB-2. In December
1941, two were in the inventory, one assigned to the 1st
Marine Aircraft Wing (1st MAW) at Marine Corps Air Station
(MCAS) Quantico, Virginia and the second assigned to Base Air Detachment
Two (BAD-2) at NAS San Diego, California. By November 1942, the Marines
were operating four JRB-2s. Three of these aircraft were at NAS San
Diego, California, one assigned to the Service Group, Marine Air Wings,
Pacific (MAWPac) and two assigned to Headquarters Squadron,
1st MAW; the fourth aircraft was assigned to Marine
Observation Squadron Two Hundred Fifty One (VMO-251) based on Espiritu
Santo Island in the New Hebrides Islands.
By August1943, the Marines had acquired the JRB-1, the SNB-1, and the
SNB-2. The largest group of aircraft were 28 SNB-1s, 25 assigned to
Marine Operational Training Squadron Eight (OTS-8), the North American
PBJ Mitchell, q.v., training unit at MCAS Edenton, North Carolina and
three assigned to the Base Air Detachment (BAD), MCAS Cherry Point, North
Carolina. One SNB-2 was assigned to the BAD at MCAS El Toro, California.
Also on the inventory were five JRBs, one each assigned to Headquarters
Squadron One (HqSq 1) at NAS San Diego, California; one assigned to HqSq
2 at Munda Airfield, New Georgia Island; HqSq 15 at Marine Corps Air Base
(MCAB), Kearney Mesa, San Diego, California; HqSq 24 at MCAS Ewa, Oahu,
Territory of Hawaii; and MCAS Quantico, Virginia.
In 1944, the Marines took delivery of JRB-3s, JRB-4s and SNB-2Cs followed
by SNB-2Hs in 1945.
U.S. Coast Guard (USCG)
The USCG acquired seven JRB-4s with the first being acquired in April
1943 and the seventh in July 1947. These aircraft were used primarily for
administrative flights. Two of these aircraft were returned to the USN in
1948/49 and the remaining five served until 1956.
SPECIFICATIONS
Wing Span: 47 feet 8 inches (14.53 meters)
Length
JRB-4: 34 feet 8 inches (10.57 meters)
SNB-1: 34 feet 2 inches (10.41 meters)
All others: 34 feet 3 inches (10.44 meters)
Height: 9 feet 9 inches (2.97 meters)
Wing Area: 349 square feet (32.42 square meters)
Gross Weight
JRB-2: 7,850 pounds (3,561 kg)
JRB-3: 8.727 pounds (3,959 kg)
JRB-4: 8.725 pounds (3,958 kg)
SNB-1: 8,195 pounds (3,717 kg)
SNB-2: 7,835 pounds (3,554 kg)
SNB-2C: 8,060 pounds (3,656 kg)
Maximum Speed
JRB-2: 225 mph (362.1 km/h)
JRB-3: 218 mph (350.8 km/h)
JRB-4: 206 mph (331.5 km/h)
SNB-1: 215 mph (346.0 km/h)
SNB-2 and -2C: 224 mph (360.5 km/h)
Service Ceiling
JRB: 26,000 feet (7,925 meters)
SNB-1: 20,000 feet (6,096 meters)
SNB-2: 24,000 feet (7,315 meters)
Maximum Range
JRB: 1,200 miles (1,931 km)
SNB-1: 870 miles (1,400 km)
SNB-2: 730 miles (1,175 km)
Armament
SNB-1: Two 30-caliber (7.62 mm) machine guns, one in the nose and one
in the dorsal turret
All others: None
Bomb Load
SNB-1: 1,000 pounds (453.6 kg)
All others: None
